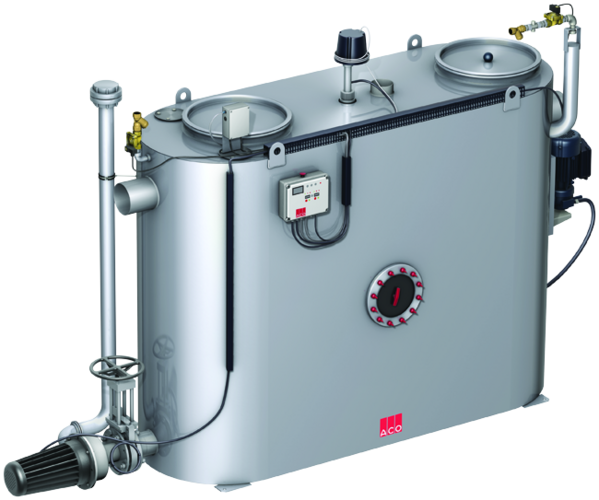

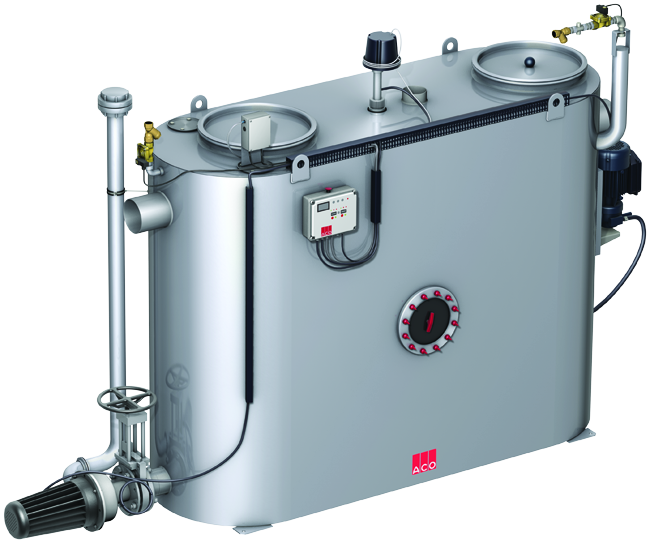

ACO Fapujet S-OAP

Kontakta oss
Distribution
Referenser

Driftssida: Höger

Nominell kapacitetNominell breddInnehåll totaltViktArt.

nr
TomFullt
[l][kg][kg]
NS 0,5DN 100620268,0888,07850.83.42
NS 1DN 100975322,01297,07851.83.42
NS 2DN 1501872462,02334,07852.83.42

Driftssida: Vänster

Nominell kapacitetNominell breddInnehåll totaltViktArt.

nr
TomFullt
[l][kg][kg]
NS 0,5DN 100620268,0888,07850.83.32
NS 1DN 100975322,01297,07851.83.32
NS 2DN 1501872462,02334,07852.83.32
Nominell kapacitetNominell breddInnehåll totaltViktDriftssidaArt.

nr
TomFullt
NS 0,5DN 100620 l268,0 kg888,0 kgHöger7850.83.42
NS 1DN 100975 l322,0 kg1297,0 kgHöger7851.83.42
NS 2DN 1501872 l462,0 kg2334,0 kgHöger7852.83.42
NS 0,5DN 100620 l268,0 kg888,0 kgVänster7850.83.32
NS 1DN 100975 l322,0 kg1297,0 kgVänster7851.83.32
NS 2DN 1501872 l462,0 kg2334,0 kgVänster7852.83.32
Nominell kapacitetDimensioner
L1L2L3L4H1H2H3H4H5W1W2B3B4D
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
NS 0,51440164024306501040970130015001680620750370730110
NS 117501950274065011901120145016501830680810370790110
NS 222802580327065013901320175019502130840970370950160

0150.46.94: Signalanlage mit GSM- Modul

Beskrivning
  • Vikt: 2 kg
Item no.
0150.46.94
