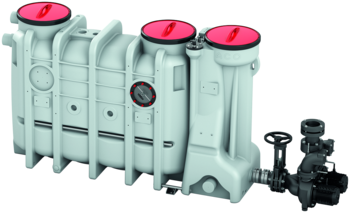

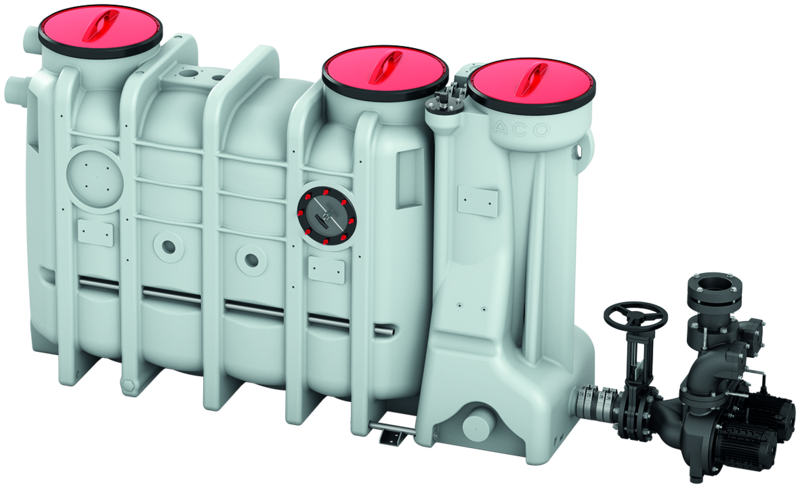

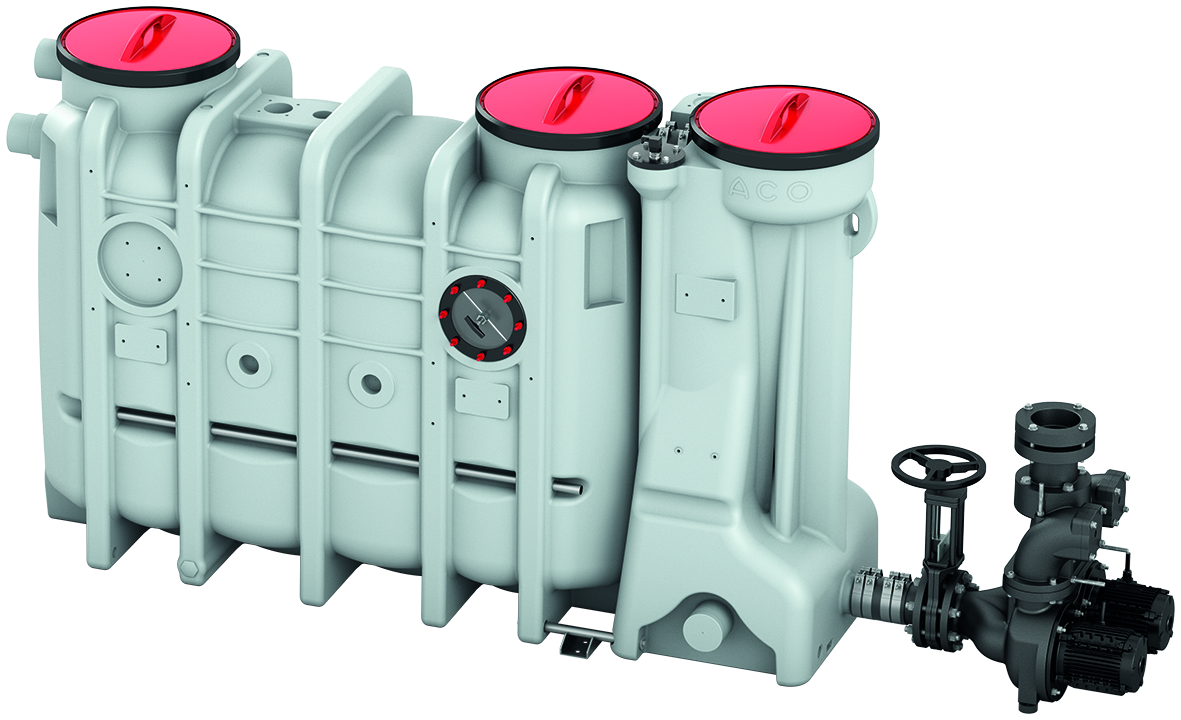

Lipusmart P-OB


Nominell kapacitetNominell breddInnehållViktArt.

nr
SlamfångFettbehållareTotalTypMotoreffektNyttovolymTomFullt
[l][l][l][kW][l][kg][kg]
NS 2DN 100210100440Pumpar 1,5kW1,5155194,0634,03552.36.00
NS 3DN 100300150630Pumpar 1,5kW1,5155204,0834,03553.36.00
NS 4DN 100400200830Pumpar 1,5kW1,5155219,01049,03554.36.00
NS 5,5DN 1507253601430Pumpar 4,0kW4235323,01753,03555.36.00
NS 7DN 1508004001600Pumpar 4,0kW4235340,01940,03557.36.00
NS 8,5DN 1509404751900Pumpar 4,0kW4235361,02261,03558.36.00
NS 10DN 15010005202000Pumpar 4,0kW4235373,02353,03560.36.00
Nominell kapacitetNominell breddInnehållViktArt.

nr
SlamfångFettbehållareTotalTypMotoreffektNyttovolymTomFullt
NS 2DN 100210 l100 l440 lPumpar 1,5kW1,5 kW155 l194,0 kg634,0 kg3552.36.00
NS 3DN 100300 l150 l630 lPumpar 1,5kW1,5 kW155 l204,0 kg834,0 kg3553.36.00
NS 4DN 100400 l200 l830 lPumpar 1,5kW1,5 kW155 l219,0 kg1049,0 kg3554.36.00
NS 5,5DN 150725 l360 l1430 lPumpar 4,0kW4 kW235 l323,0 kg1753,0 kg3555.36.00
NS 7DN 150800 l400 l1600 lPumpar 4,0kW4 kW235 l340,0 kg1940,0 kg3557.36.00
NS 8,5DN 150940 l475 l1900 lPumpar 4,0kW4 kW235 l361,0 kg2261,0 kg3558.36.00
NS 10DN 1501000 l520 l2000 lPumpar 4,0kW4 kW235 l373,0 kg2353,0 kg3560.36.00
Nominell kapacitetDimensioner
L1L2L3L4L5H1H2H3H4W1W2B3D
[mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm][mm]
NS 211008001625300680105575316801500742880930110
NS 314508001975300680105575316801500742880930110
NS 417608002285300680105575316801500742880930110
NS 5,51760835228730068012507531880170096011301180160
NS 71960835248730068012507531880170096011301180160
NS 8,52250835277730068012507531880170096011301180160
NS 102450835297730068012507531880170096011301180160

Blixtljus

Beskrivning
  • Vikt: 0,5 kg

Blixtljus


199125

Beskrivning
  • Produktfördelar
    • Flexibelt montage
    • "Knock-out" för anslutningar
    • Lös monteringsram
  • Produkt information
    • Standardkoppling
    • Rostfri plåt AISI 304
    • Lås med trekantsnyckel
    • Enkelt att byta låscylinder till nyckelsystem
    • Med konsol på insida lucka för styrskåp
  • Vikt: 6 kg

199126

Beskrivning
  • Produktfördelar
    • Enkel att montera
    • PLC för inställning av tid
    • Dygnspåfyllning av vattenlås
  • Produkt information
    • Monteras i tömningsskåp
    • 230V, 10A
    • Tydlig driftindikering
    • Kapsling IP54, ABS
  • Vikt: 2 kg

0150.46.94: Signalanlage mit GSM- Modul

Beskrivning
  • Vikt: 2 kg

Signaleringsenhet

Suitable for
  • Quatrix-K typ 3F automatiskt bakvattenventil
  • Alla Muli avloppspumpstationer
  • Förinstallation i container mono/duo
  • Muli-Max
  • Sinkamat-S
  • Sinkamat-Z
  • Sinkamat-Z (undergolv)
    • Duo
Beskrivning
  • Självladdande
  • Med potentialfri kontakt
  • Synlig och hörbar
  • Utan Kontaktregulator
  • För montering utanför Ex-klassat område
  • Hus: 125 x 175 x 75 mm
  • Kapslingsklass: IP65
  • Driftsspänning: 230 V/AC 50/60 Hz
  • Färdigkopplad med kabel: 2 m
  • Vikt: 1,4 kg

Signalhorn

Beskrivning
  • 230V AC
  • Strömförbrukning: 15mA
  • 172x70x78mm (LxBxD)
  • Kapsling: IP33
  • 92 dB(A)
  • Vikt: 0,3 kg

Föravskiljare DN 100

Suitable for
  • Fettavskiljare LipuJet-P/LipuSmart-P
    • NS 1 – 4
  • Stärkelseavskiljare FapuJet-P-OAP
    • NS 0,5 – 1
Beskrivning
  • För installation i vertikala rör DN 100 som leder till fettavskiljare
  • Rund form med
    • Anslutning med packning (material SBR) på inlopp och spikände på utlopp
    • Korg tillverkad i rostfritt stål, materialkvalitet 316 för avskiljning av grova partiklar som bestick och trasor
    • Luktsäker underhållsöppning DN 450
  • Vikt: 9,7 kg

Föravskiljare DN 150

Suitable for
  • Fettavskiljare LipuJet-P/LipuSmart-P
    • NS 5,5 – 10
  • Stärkelseavskiljare FapuJet-P-OAP
    • NS 2
Beskrivning
  • För installation i vertikala rör DN 150 som leder till fettavskiljare
  • Rund form med
    • Anslutning med packning (material SBR) på inlopp och spikände på utlopp
    • Korg tillverkad i rostfritt stål, materialkvalitet 316 för avskiljning av grova partiklar som bestick och trasor
    • Luktsäker underhållsöppning DN 450
  • Vikt: 12,6 kg

0175.23.73: Handmembranpumpe komplett bestehend aus:

Suitable for
  • Avloppspumpstation
Beskrivning
  • Vikt: 14,4 kg

Inloppsmuffl DN 50

Beskrivning
  • I plast
  • För sidoanslutning som tillval
  • För montering på plats
  • Vikt: 0,1 kg

Stoppventil 1½"

Suitable for
  • Avloppspumpstation
Beskrivning
  • För handmembranpump
  • Vikt: 1 kg

Trevägsventil 1½"

Suitable for
  • Avloppspumpstation
Beskrivning
  • För handmembranpump
  • Vikt: 3,3 kg

Stoppventil DN 80

Suitable for
  • LipuSmart-P
  • Muli-Star MDP1/MWP1
  • Muli-Star DDP 1/2
Beskrivning
  • Tillverkat i gjutjärn
  • 8 skruvar och muttrar
  • 1 DN 80 tätning
  • Längd: 180 mm
  • Vikt: 19,4 kg

Inloppsventil DN 100

Suitable for
  • Avloppspumpstation
  • Fettavskiljare i polyetylen
  • Stärkelseavskiljare i polyetylen
  • Tankanläggning uppströms
    • Typ 2 och 4
  • LipuMobil-P – typ 0.5
Beskrivning
  • Tillverkad i PVC
  • 110 mm knock-out på båda sidor med kanttätningsring
  • Dimensioner totalt: 176 x 330 mm (L x H)
  • Vikt: 3,1 kg

Inloppsventil DN 150

Suitable for
  • Avloppspumpstation
  • Fettavskiljare i polyetylen
  • Stärkelseavskiljare i polyetylen
  • Tankanläggning uppströms
    • Typ 7 – typ 10
Beskrivning
  • Tillverkad i PVC
  • 160 mm knock-out på båda sidor med kanttätningsring
  • Dimensioner totalt: 226 x 510 mm (L x H)
  • Vikt: 7 kg

Toroidal tätningsring

Suitable for
  • LipuSmart-P
  • Powerlift installationsset DN 100
  • Fäkablock II
  • Alla Muli avloppspumpstationer
Beskrivning
  • Som ytterligare komponent för tryckledning DN 80
  • Vikt: 0,3 kg
