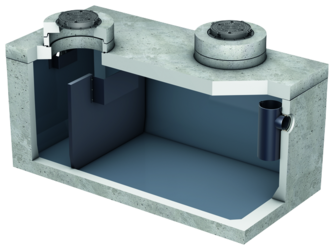

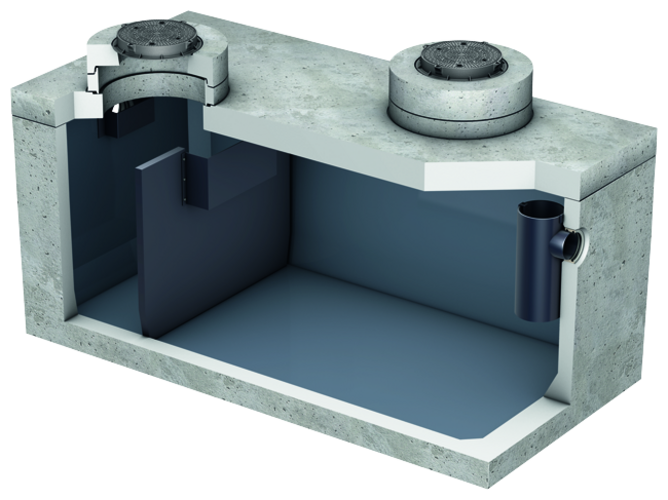

Lipumax Pr-c-fst Coating 399309

Nominell kapacitet	Inlopp/utlopp DN	Innehåll			Tyngsta enskilda komponent	Bassängvikt	Art. nr	Nedladdningar
	Inlopp/utlopp DN	Slamfång	Fettbehållare	Total	Tyngsta enskilda komponent	Bassängvikt
	[mm]	[l]	[l]	[l]	[kg]	[kg]
NS 20	200	6000	910	13540	19000,0	27200	710394
NS 25	200	5100	1010	13520	19000,0	27200	710436
NS 30	250	3000	1200	13120	19000,0	27200	710442
NS 40	315	5000	1600	13100	19000,0	36700	710440

Nominell kapacitet	Inlopp/utlopp DN	Art. nr	Dimensioner			Tmax
	Inlopp/utlopp DN		H1	H2	D	Tmax
	[mm]		[mm]	[mm]	[mm]	[mm]
NS 20	200	710394	1710	1640	1235	3600
NS 25	200	710436	1710	1640	1235	3600
NS 30	250	710442	1685	1615	1260	3600
NS 40	315	710440	1585	1515	1360	3600

Halsring

Halsring

Schaktring

Schaktring

Nominell kapacitet	Inlopp/utlopp DN	Innehåll			Tyngsta enskilda komponent	Bassängvikt	Art. nr	Nedladdningar
	Inlopp/utlopp DN	Slamfång	Fettbehållare	Total	Tyngsta enskilda komponent	Bassängvikt
	[mm]	[l]	[l]	[l]	[kg]	[kg]
NS 20	200	6000	910	13540	19000,0	27200	710394
NS 25	200	5100	1010	13520	19000,0	27200	710436
NS 30	250	3000	1200	13120	19000,0	27200	710442
NS 40	315	5000	1600	13100	19000,0	36700	710440

Nominell kapacitet	Inlopp/utlopp DN	Art. nr	Dimensioner			Tmax
	Inlopp/utlopp DN		H1	H2	D	Tmax
	[mm]		[mm]	[mm]	[mm]	[mm]
NS 20	200	710394	1710	1640	1235	3600
NS 25	200	710436	1710	1640	1235	3600
NS 30	250	710442	1685	1615	1260	3600
NS 40	315	710440	1585	1515	1360	3600

Halsring

Halsring

Schaktring

Schaktring
