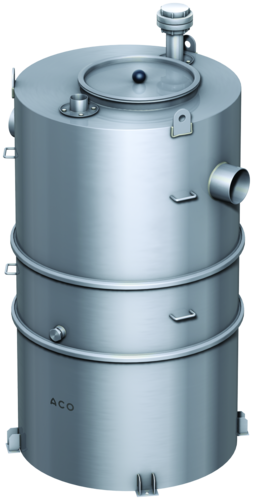

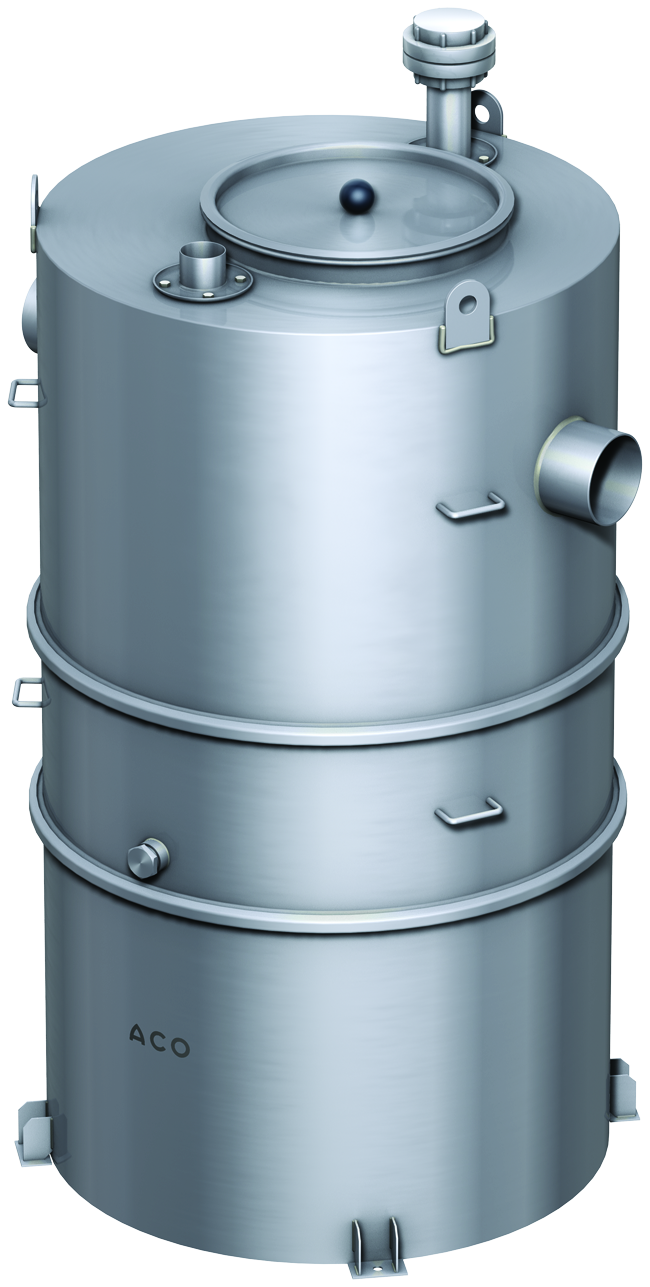

Coalisator RD
Nominell kapacitet | Inlopp/utlopp enligt DIN EN 877 | Slamfång | Dimensioner | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
L1 | L2 | L3 | D | H1 | H2 | H3 | H4 | D1 | Z/antal segment | |||
[l] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
NS 3 | DN 100 | 600 | 1180 | 1090 | 800 | 110 | 985 | 965 | 1450 | 1650 | 1005 | 785/2 |
NS 6 | DN 150 | 1200 | 1180 | 1090 | 800 | 160 | 1330 | 1310 | 1800 | 2000 | 1005 | 830/3 |
NS 10 | DN 150 | 2500 | 1950 | 2060 | 1190 | 160 | 1095 | 1075 | 1600 | 1800 | 1750 | 600/3 |
DN 100 | 785/2 | |||||||||||
DN 150 | 830/3 | |||||||||||
DN 150 | 600/3 |
