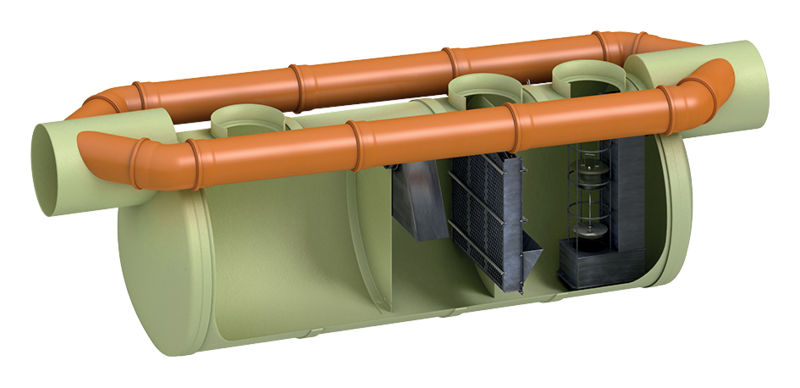

ACO Oleopator Bypass G-h 399379

Nominell kapacitet	Innehåll			Vikt	Art. nr	Nedladdningar
	Slamfång	Oljetank	Total	Vikt
	[l]	[l]	[l]	[kg]
NS 40	4000	4750	9152	800	12869.01
NS 40	4000	4750	9152	890	12870.01
NS 50	5000	4750	9780	820	12871.01
NS 50	5000	4750	9780	920	12872.01
NS 65	6500	4500	18812	1700	12873.01
NS 65	6500	4500	18812	1830	12874.01
NS 80	8000	4500	20294	1860	12875.01
NS 80	8000	4500	20294	1980	12876.01
NS 100	10000	4500	22817	2000	12877.01
NS 100	10000	4500	22817	2100	12878.01

Nominell kapacitet	Innehåll			Vikt	Art. nr
Nominell kapacitet	Slamfång	Oljetank	Total	Vikt	Art. nr
NS 40	4000 l	4750 l	9152 l	800,0 kg	12869.01
NS 40	4000 l	4750 l	9152 l	890,0 kg	12870.01
NS 50	5000 l	4750 l	9780 l	820,0 kg	12871.01
NS 50	5000 l	4750 l	9780 l	920,0 kg	12872.01
NS 65	6500 l	4500 l	18812 l	1700,0 kg	12873.01
NS 65	6500 l	4500 l	18812 l	1830,0 kg	12874.01
NS 80	8000 l	4500 l	20294 l	1860,0 kg	12875.01
NS 80	8000 l	4500 l	20294 l	1980,0 kg	12876.01
NS 100	10000 l	4500 l	22817 l	2000,0 kg	12877.01
NS 100	10000 l	4500 l	22817 l	2100,0 kg	12878.01

Nominell kapacitet	Inlopp/utlopp enligt DIN EN 877	Dimensioner
		H1	H2
		[mm]	[mm]
NS 40	600	1904	1804
NS 40	800	1904	1804
NS 50	600	1905	1805
NS 50	800	1905	1805
NS 65	800	1728	1628
	800
NS 80	1000	1749	1649
	1000
NS 100	1000	1749	1649

Nominell kapacitet	Innehåll			Vikt	Art. nr	Nedladdningar
	Slamfång	Oljetank	Total	Vikt
	[l]	[l]	[l]	[kg]
NS 40	4000	4750	9152	800	12869.01
NS 40	4000	4750	9152	890	12870.01
NS 50	5000	4750	9780	820	12871.01
NS 50	5000	4750	9780	920	12872.01
NS 65	6500	4500	18812	1700	12873.01
NS 65	6500	4500	18812	1830	12874.01
NS 80	8000	4500	20294	1860	12875.01
NS 80	8000	4500	20294	1980	12876.01
NS 100	10000	4500	22817	2000	12877.01
NS 100	10000	4500	22817	2100	12878.01

Nominell kapacitet	Innehåll			Vikt	Art. nr
Nominell kapacitet	Slamfång	Oljetank	Total	Vikt	Art. nr
NS 40	4000 l	4750 l	9152 l	800,0 kg	12869.01
NS 40	4000 l	4750 l	9152 l	890,0 kg	12870.01
NS 50	5000 l	4750 l	9780 l	820,0 kg	12871.01
NS 50	5000 l	4750 l	9780 l	920,0 kg	12872.01
NS 65	6500 l	4500 l	18812 l	1700,0 kg	12873.01
NS 65	6500 l	4500 l	18812 l	1830,0 kg	12874.01
NS 80	8000 l	4500 l	20294 l	1860,0 kg	12875.01
NS 80	8000 l	4500 l	20294 l	1980,0 kg	12876.01
NS 100	10000 l	4500 l	22817 l	2000,0 kg	12877.01
NS 100	10000 l	4500 l	22817 l	2100,0 kg	12878.01

Nominell kapacitet	Inlopp/utlopp enligt DIN EN 877	Dimensioner
		H1	H2
		[mm]	[mm]
NS 40	600	1904	1804
NS 40	800	1904	1804
NS 50	600	1905	1805
NS 50	800	1905	1805
NS 65	800	1728	1628
	800
NS 80	1000	1749	1649
	1000
NS 100	1000	1749	1649
